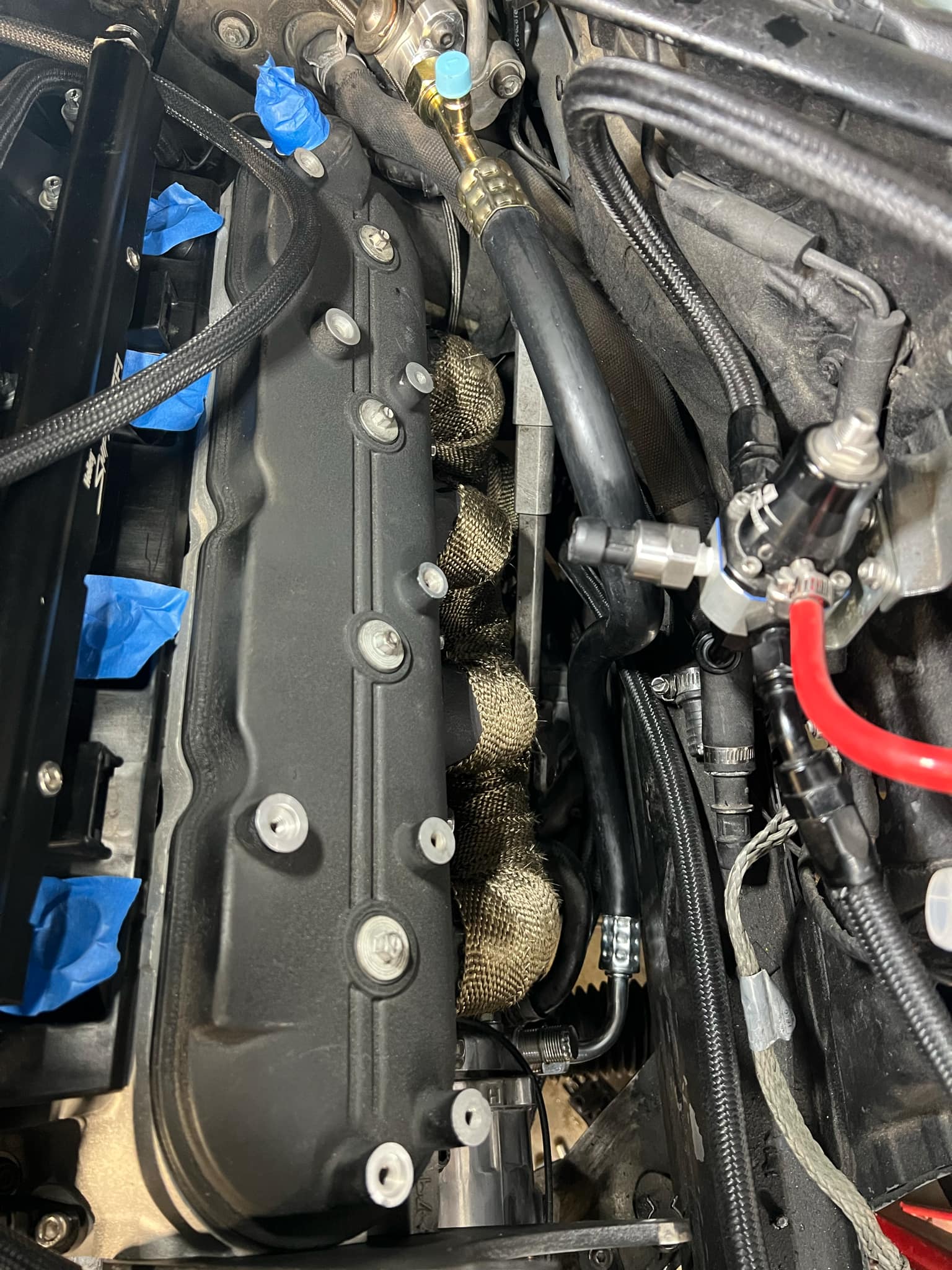

Please Refer to your spacing - Truck, F-body, Corvette: Applicable to non AC drive by omitting unused bolt locations.
Alternator must be grounded, if you do not add an external ground strap be sure to remove powder coating for a ground path on the accessory bracket.
- Dark Blue: 2”
- Red: Truck = 1.65”, F Body = 1”, Corvette = none
- Yellow: Truck = 1.9”, F Body =1.25”, Corvette = 0.25”
- Green: 0.5” (between power steering pump and front plate)
- Pink: 0.1875” (between compressor and front plate)
- Orange: 2” (NOTE: early kits may have a raw aluminum spacer 2.25")
- White: Truck = 1.9”, F Body = 1.25”, Corvette = 0.25
- Note If early kit with raw Orange spacer: Truck = 1.65”, F Body = 1”, Corvette =none
- Light Blue: Truck ONLY: 1.65", F body rear bracket on back of compressor ear, Corvette bracket front of compressor mount ear.
- 2 x Idler Spacer on front of mount plate 1" diameter x 0.688"
NOTE Rear compressor bracket:
Truck spacing ONLY kit will have 2 spacers between rear compressor mount and compressor as show below. F body rear bracket on back of compressor ear, Corvette bracket front of compressor mount ear.
Belt Routing
