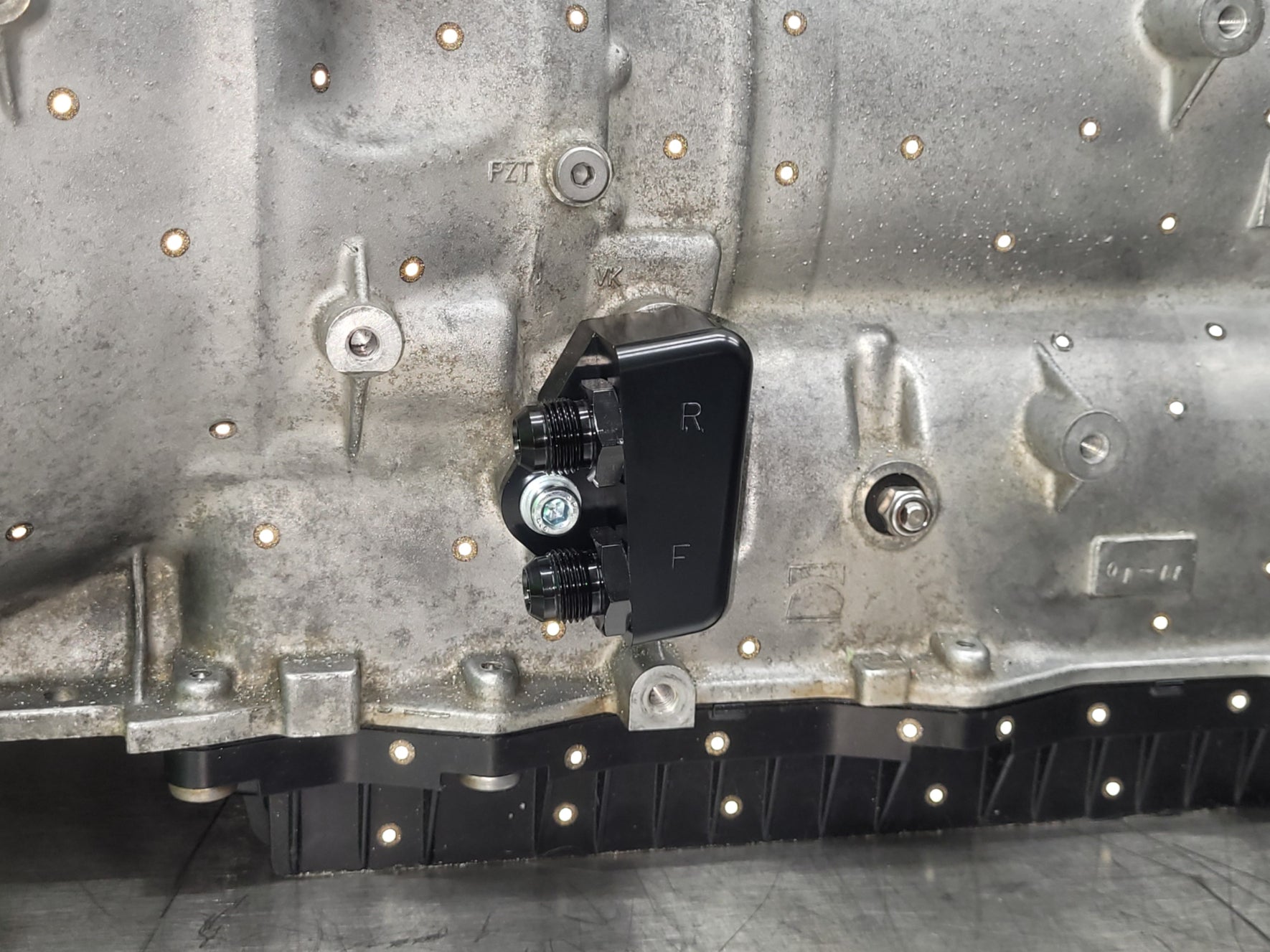

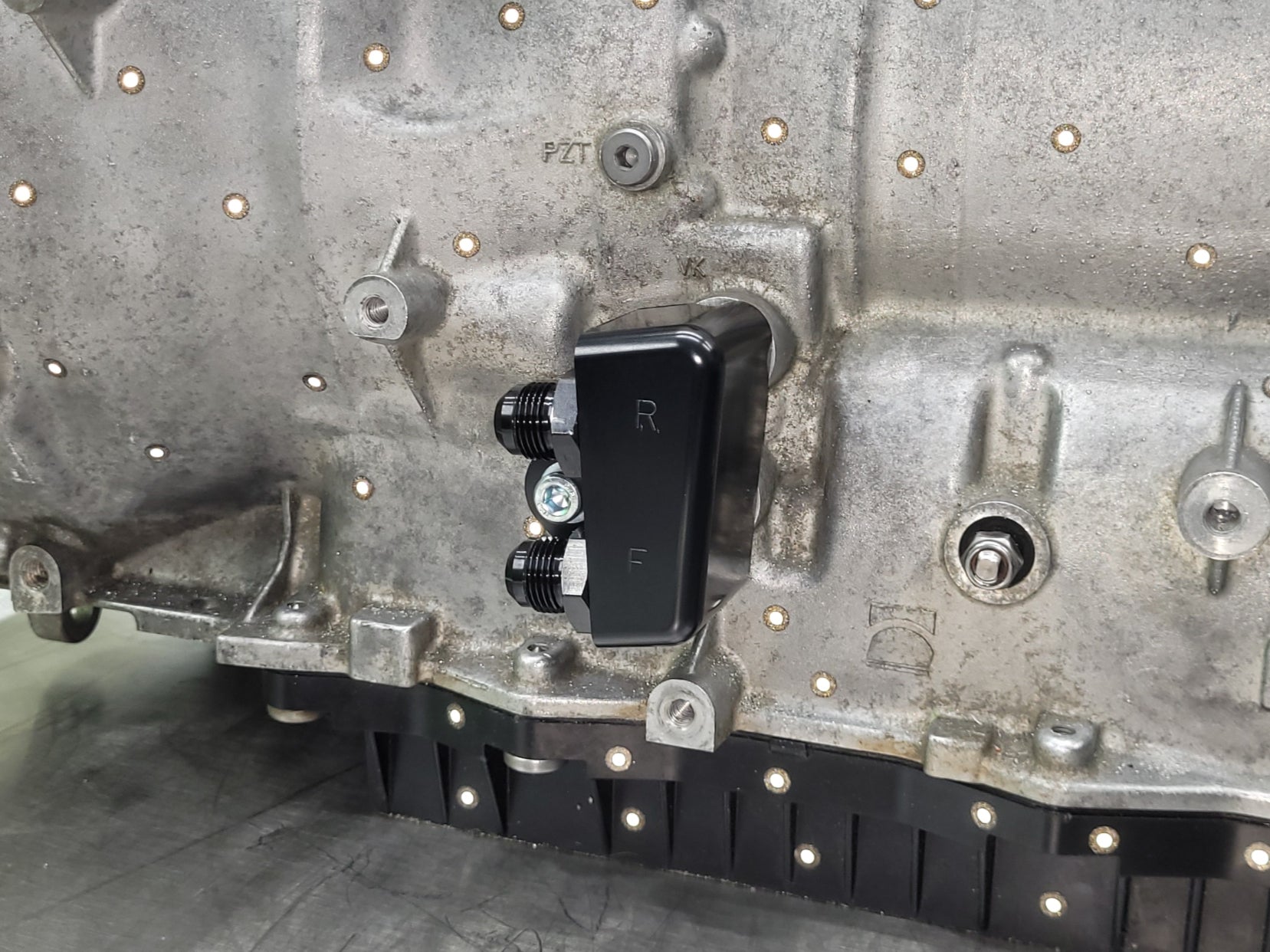

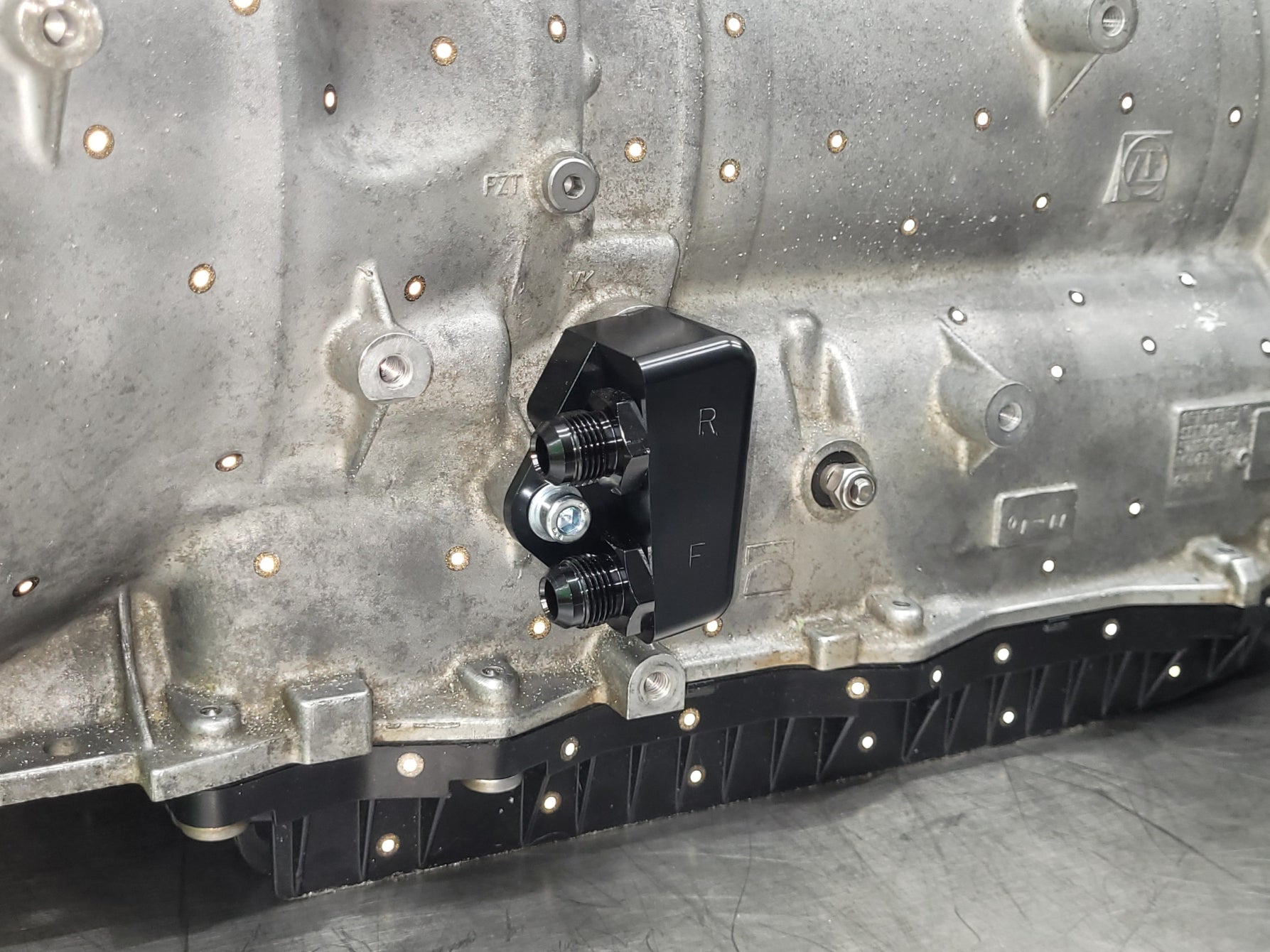

8HP AN cooler adapter block with AN fittings installed on a Dodge 8HP case 8HP AN cooler adapter block with AN fittings installed on a Dodge 8HP case
Billet 8HP cooler adapter for the Dodge 8HP70 75 Billet 8HP cooler adapter for the Dodge 8HP70 75
8HP cooler adapter block, port detail 8HP cooler adapter block, port detail
8HP cooler adapter with AN fittings 8HP cooler adapter with AN fittings
8HP cooler adapter mounting hardware 8HP cooler adapter mounting hardware
8HP AN cooler adapter block with AN fittings installed on a Dodge 8HP case
Billet 8HP cooler adapter for the Dodge 8HP70 75
8HP cooler adapter block, port detail
8HP cooler adapter with AN fittings
8HP cooler adapter mounting hardware

8HP Cooler Adapter - Dodge 8HP70 75

$120.00
Application: Ram
8HP AN cooler adapter block with AN fittings installed on a Dodge 8HP case
8HP Cooler Adapter - Dodge 8HP70 75
$120.00
Application: Ram

Billet adapter for the factory cooler line ports on the Dodge 8HP70 and 8HP75, so you can run an aftermarket transmission cooler on PTFE AN lines instead of adapting the factory quick connects.

The Ram version is a low profile block with 8AN ORB (3/4-16) threaded ports that sits tight to the case for clearance and easy access, and it comes with the mounting bolt, washer, and spare O-rings. The Charger, Challenger, Durango, and Jeep version uses AN ORB 90 degree swivel fittings for those cases' threaded line ports.

8AN is the standard fitting size, with 6AN and 10AN available, so note the size in your order or message us if you need something other than 8AN. The Ram block covers the 2013 to 2024 8HP70 and 8HP75. It pairs with the 8HP adapter kit, and you finish the cooling system with an AN line kit, a cooler core, and an inline thermostat.
